Focused Ion Beam Systems

FIB is used to observe surface structure by detecting electrons generated upon ion beam irradiation and process the surface of a sample to an arbitrary shape by the use of focused ion beam. Since the ion beam can arbitrarily scan on a sample, FIB is widely used for site-specific cross section preparation for SEM observation and lamella preparation for TEM observation. FIB-SEM incorporates both FIB and SEM in a single system, and allows in-situ SEM observation of FIB-prepared cross section. By repeating FIB milling and SEM observation, serial cross-sectional SEM images can be collected and reconstructed for further three-dimensional structural analysis of the sample.

Ethos NX5000
Focused Ion and Electron Beam System

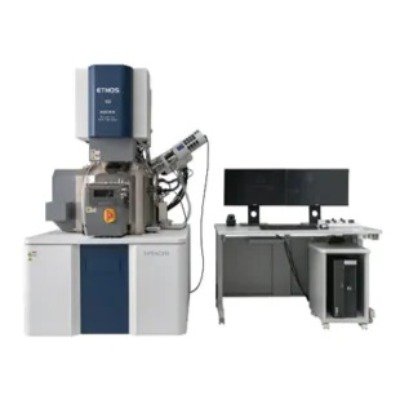

The Hitachi Ethos FIB-SEM incorporates the latest-generation FE-SEM with superb beam brightness and stability. Ethos delivers high-resolution imaging at low voltages combined with ion optics for nanoscale precision processing.

Real-time 3D analytical FIB-SEM

SEM column and FIB column are orthogonally arranged to optimize column layout for 3D structural analysis. FE electron source and its unique detection geometry enable high resolution SEM imaging at beam coincident point. 3D-EDS and 3D-EBSD can be performed without moving the stage. Employing micro-sampling and triple beam system, high quality samples can be prepared for TEM and atom probe.

See more details >>

Focused Ion and Electron Beam System & Triple Beam System

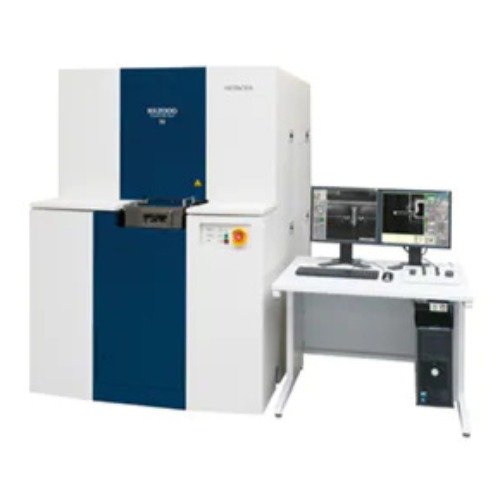

NX2000 was developed towards the ultimate TEM sample preparation system. FE electron source and high-sensitivity detection system allow high-contrast, real-time end point detection. Sample orientation control technology and Ar/Xe triple beam system enable significant reduction of artefacts and damage during sample preparation. With auto micro-sampling function, the throughput of TEM sample preparation can be drastically improved.

See more details >>

Focused Ion Beam System

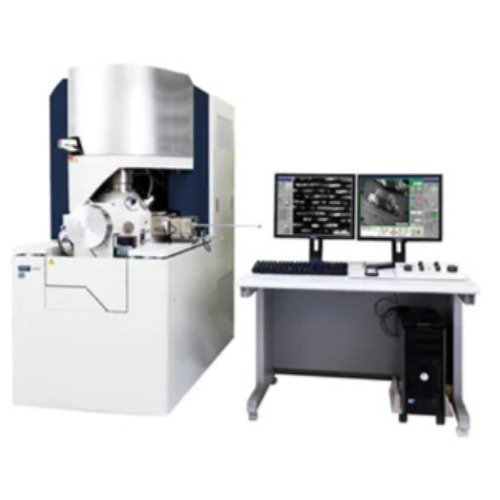

MI4050 allows both high resolution SIM imaging and ultrafast FIB milling. High quality TEM sample can be readily prepared using Micro-sampling and low energy FIB. Cross-section FIB slicing and SIM imaging can be alternately repeated to automatically collect serial cross-sectional SIM images for subsequent 3D reconstruction.

See more details >>

Micro-sampling System

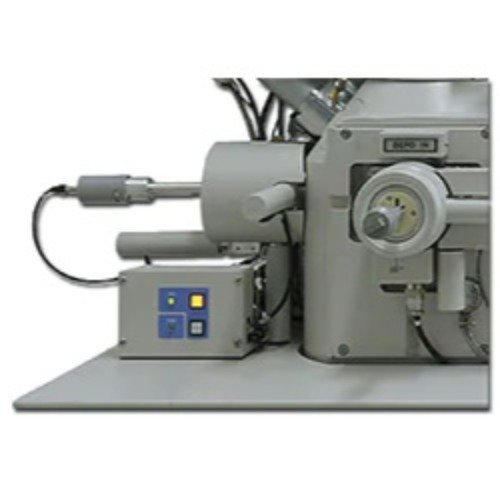

This device is used for preparing the desired wafer part for analysis with STEM, TEM, etc. by extracting a micro sample with an ion beam in the vacuum chamber of an FIB system.

See more details >>

CAD Navigation System NASFA
(Navigation System for Failure Analysis)

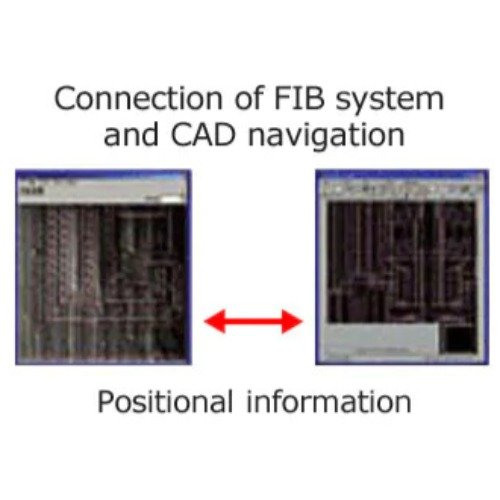

The CAD Navigation System for Failure Analysis (NASFA) is used to identify the location on the CAD data corresponding to the LSI pattern being observed with a SEM or FIB system. When the coordinates on the CAD data are specified, the sample stage moves to the particular coordinates, displaying the corresponding SEM image (or SIM image for the FIB). The CAD data and SEM image can be overlaid and it is easy to verify the lower-layer wiring location, significantly improving the efficiency of analysis and repair work.
